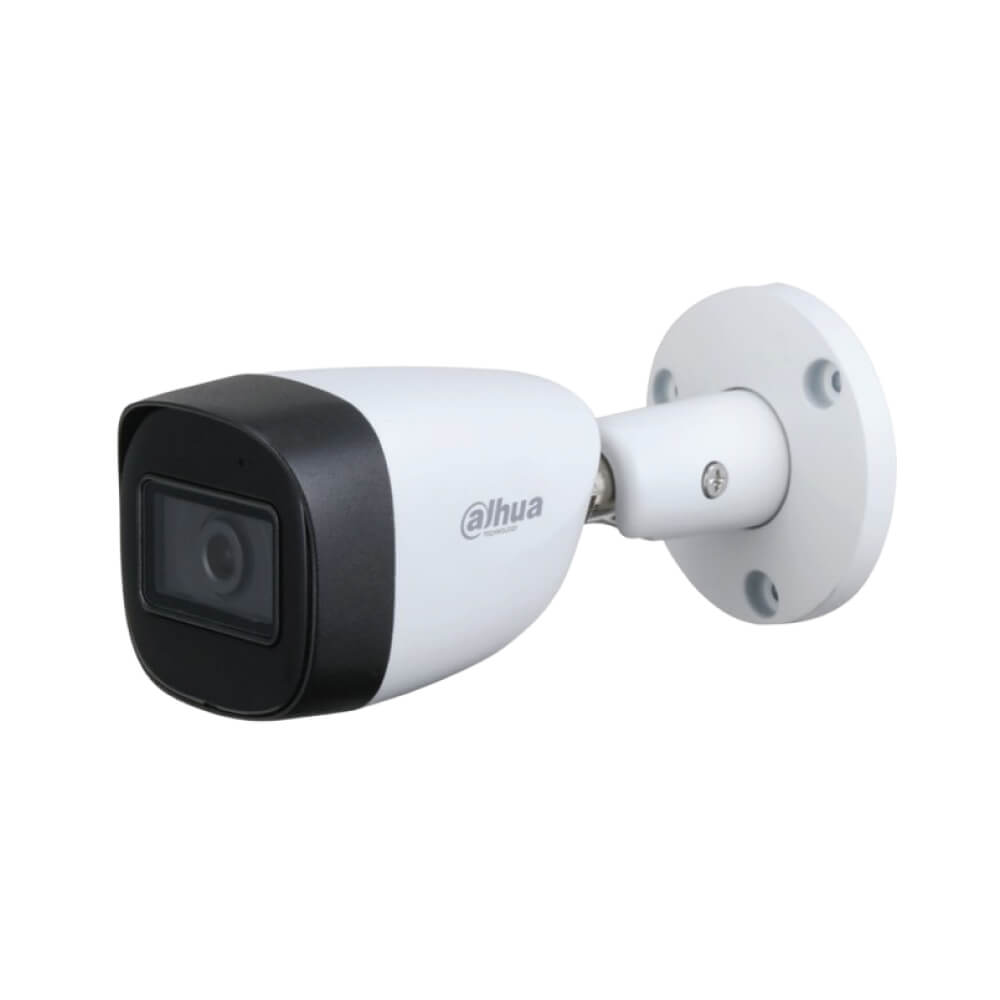

กล้องวงจรปิด มีไมล์ Dahua 5MP DH-HFW1500CMPA

Brand

Dahua

Model

DH-HFW1500CMPA-28

Image Sensor

1/2.7 inch CMOS

Max. Resolution

2880 (H) × 1620 (V)

Electronic Shutter Speed

PAL: 1/25s–1/100000s
NTSC: 1/30s–1/100000s

Min. Illumination

0.005 Lux/F1.6, 30IRE, 0 Lux IR on

IR Distance

30 m (98.4 ft)

Illumination On/Off Control

Auto; manual

Pan/Tilt/Rotation Range

Pan: 0°–360°
Tilt: 0°–180°
Rotation: 0°–360°

Lens Type

Fixed-focal

Focal Length

2.8 mm 3.6 mm

Angle of View

2.8 mm: 132° × 111° × 58°
(diagonal × horizontal × vertical)
3.6 mm: 109° × 92° × 48°
(diagonal × horizontal × vertical)

Video Frame Rate

CVI:
PAL: 5M@25 fps; 4M@25 fps; 1080P@25 fps;
NTSC: 5M@25 fps; 4M@30 fps; 1080P@30 fps
AHD:
PAL: 4M@25 fps;
NTSC: 4M@30 fps
TVI:
PAL: 4M@25 fps;
NTSC: 4M@30 fps
CVBS:
PAL: 960H;
NTSC: 960H

Resolution

5M (2880 × 1620); 4M (2560 × 1440); 1080P (1920 × 1080); 960 H (960 × 576/960 × 480)

WDR

DWDR

White Balance

Auto; manual

Gain Control

Auto; manual

Power Supply

12V ±30% DC

Power Consumption

Max 3.7W (12V DC, IR on)

Dimensions

166.6 mm × 69.7 mm × 70.0 mm（6.56" × 2.75" ×2.75"）

Net Weight

0.33 kg (0.73 lb)

Gross Weight

0.43 kg (0.95 lb)
