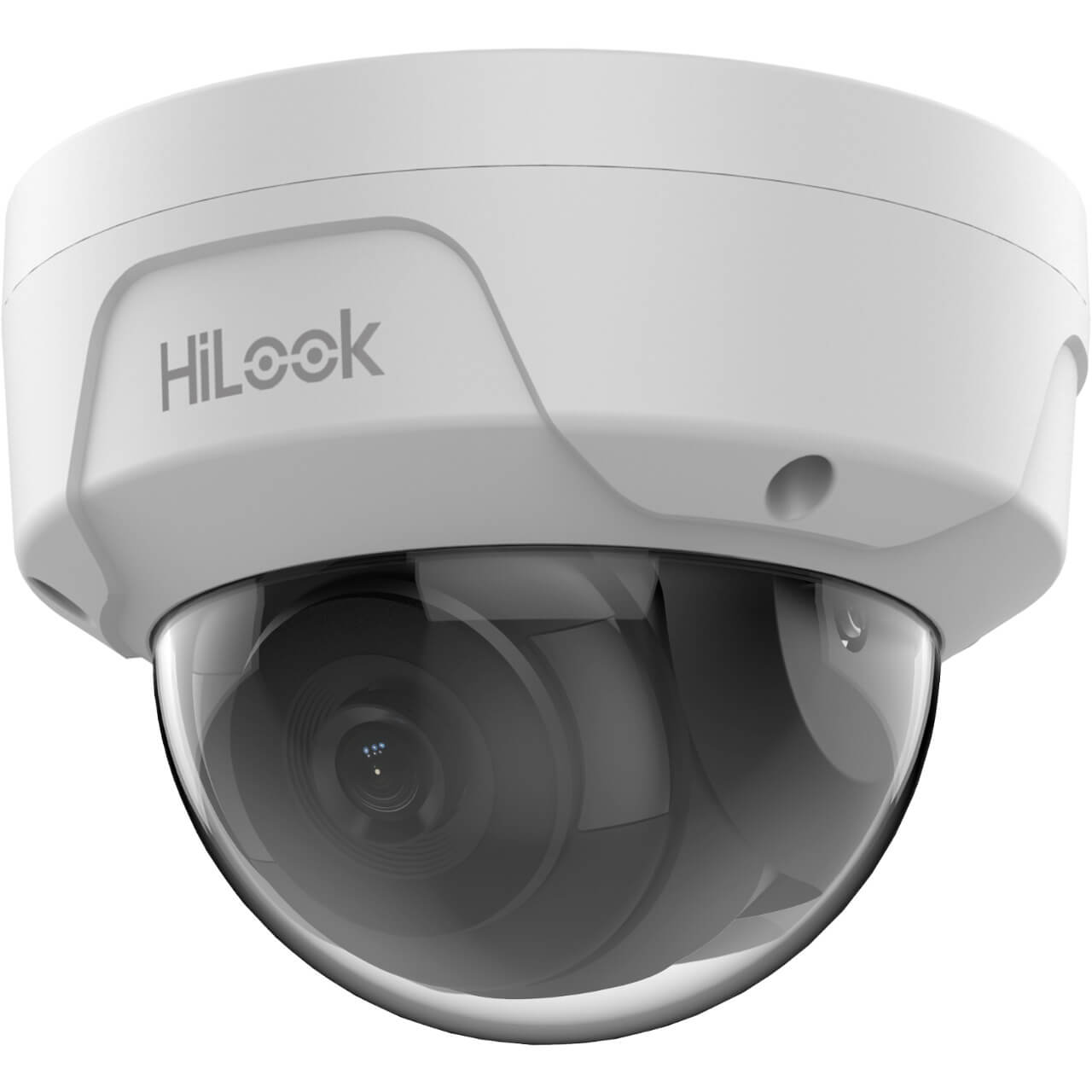

กล้องวงจรปิด HiLook IP 2MP IPC-D121H(M)

Brand

HILOOK

Model

IPC-D121H(M)

Image Sensor

1/2.7" Progressive Scan CMO

Min. Illumination

Color: 0.01 Lux @(F2.0, AGC ON), B/W: 0 Lux with IR

Shutter Speed

1/3 s to 1/100, 000s

Wide Dynamic Range

Digital WDR

Day & Night

IR cut filter

Angle Adjustmen

Pan: 0° to 355°, tilt: 0° to 75°

Focal Length & FOV

2.8 mm, horizontal FOV 112.1°, vertical FOV 60.0°, diagonal FOV 132.2°
4 mm, horizontal FOV 90.2°, vertical FOV 48.6°, diagonal FOV 107.6°

Lens Mount

M12

Focus

Fixed

IR IR Wavelength

850 nm

IR Range

Up to 30 m

Max. Resolutio

1920 × 1080

Main Stream

50 Hz: 25 fps (1920 × 1080, 1280 × 720)
60 Hz: 30 fps (1920 × 1080, 1280 × 720)

Sub-Stream

50 Hz: 25 fps (640 × 480, 640 × 360)
60 Hz: 30 fps (640 × 480, 640 × 360)

Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™,
SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS

Image Settings

Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client
software or web browser.

Image Enhancement

BLC, 3D DNR

Dimension

 111 mm × 82.4 mm (Ø 4.4" × 3.2")

Package Dimension

134 mm × 134 mm × 108 mm (5.3" × 5.3" × 4.3")

Weight

Approx. 410 g (0.9 lb.)

With Package Weight

Approx. 610 g (1.3 lb

Language

English, Ukrainian

Power Consumption and Current

12 VDC, 0.4 A, max. 5 W
PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.15 A, max. 6.5 W

Power Supply

12 VDC ± 25%
PoE: 802.3af, Class 3

Power Interface

Ø 5.5 mm coaxial power plug
