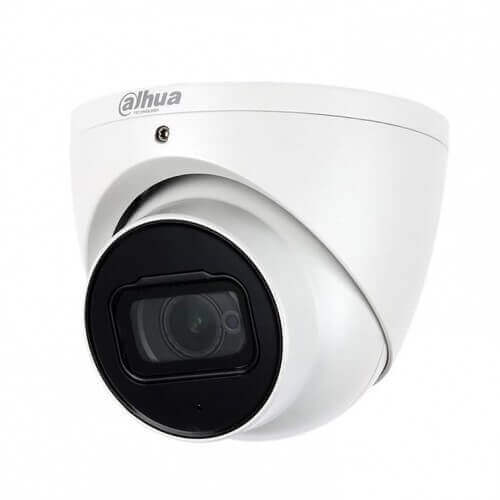

กล้องวงจรปิดโดม มีไมล์ Dahua 2MP DH-HAC-HDW1200TLP-A

Brand

Dahua

Model

DH-HAC-HDW1200TLP-A

Image Sensor

1/2.7 inch CMOS

Max. Resolution

1920 (H) × 1080 (V)

Electronic Shutter Speed

PAL: 1/25s–1/100000s
NTSC: 1/30s–1/100000

Min. Illumination

0.02Lux/F1.85, 30IRE, 0Lux IR on

IR Distance

30m (98.42ft)

IR On/Off Control

Auto; manual

Pan/Tilt/Rotation Range

Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360

Lens Type

Fixed-focal

Focal Length

2.8 mm; 3.6 mm

Angle of View

2.8mm: 118°×103°×59° (diagonal×horizontal×vertical)
3.6mm: 103.8°×87.5°×47° (diagonal×horizontal×vertic

Video Frame Rate

CVI:
PAL: 1080P@25fp; 720P@25fps; 720@50fps
NTSC: 1080P@30fp; 720P@30fps; 720@60fps
AHD:
PAL: 1080P@25fp; 720P@25fps
NTSC: 1080P@30fp; 720P@30fps
TVI:
PAL: 1080P@25fp; 720P@25fps; 720@50fps
NTSC: 1080P@30fp; 720P@30fps; 720@60fps
CVBS:
PAL: 960H
NTSC: 960H

Resolution

1080P (1920×1080); 720P (1280×720); 960H (960×576/960×480)

WDR

DWDR

Audio Port

Built-in mic (-A)

Video Port

Video output choices of CVI/TVI/AHD/CVBS by one BNC port

Power Supply

12V ±30% DC

Power Consumption

Max 3.6W (12V DC, IR on)

Dimensions

97.0mm×85.8mm (Φ3.82"×3.38")

Net Weight

0.22kg (0.49lb)

Gross Weight
