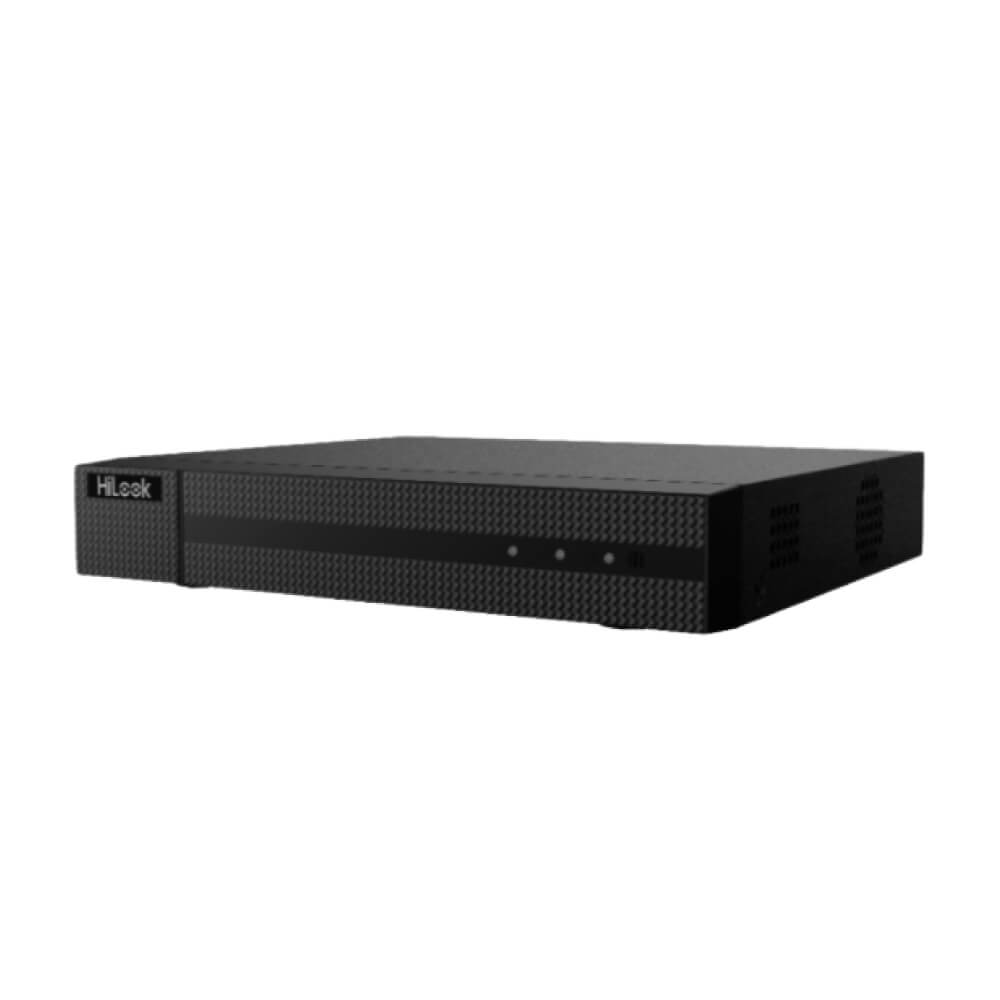

เครื่องบันทึก HiLook 16 CH DVR-216Q-M1

Brand

HILOOK

Model

DVR-216Q-M1

Video Compression

H.265 Pro+/H.265 Pro/H.265/H.264+/H.264

Encoding Resolution

When 1080p lite mode is not enabled:
4 MP lite/1080p/720p/VGA/WD1/4CIF/CIF
When 1080p lite mode is enabled:
4 MP lite/3 MP/1080p lite/720p lite/VGA/WD1/4CIF

Frame Rate

Main stream:
When 1080p Lite mode is not enabled:
4 MP lite/1080p@15 fps; 720p/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N)
When 1080p Lite mode is enabled:
4 MP lite@15 fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25 fps (P)/30 fp
Sub-stream:
WD1/4CIF@12 fps; CIF@25 fps (P)/30 fps (N)

Video Bitrate

32 Kbps to 10 Mbps

Stream Type

Video, Video & Audio

Audio Compression

G.711u

Audio Bitrate

64 Kbps

IP Video Input

2-ch (up to 18-ch)
Enhanced IP mode on:
8-ch (up to 24-ch), each up to 4 Mbps
Up to 6 MP resolution
Support H.265+/H.265/H.264+/H.264 IP cameras

Analog Video Input

16-ch
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connect

HDTVI Input

4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30

AHD Input

4 MP, 1080p25, 1080p30, 720p25, 720p30

CVBS Input

PAL/NTSC

HDMI Output

3K@20 fps, 4 MP@30 fps, 4 MP@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@60 fps,
720p@50 fps, 720p@30 fps, 720p@25 fps

VGA Output

1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60

Two-way audio

1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)

Audio Input

1-ch, RCA (2.0 Vp-p, 1 KΩ)
16-ch via coaxial cable

Audio Output

1-ch, RCA (Linear, 1 KΩ)

Total bandwidth

128 Mbps

Network Protocol

TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS,
ONVIF

Network Interface

1,RJ45 10/100/1000 Mbps self-adaptive Ethernet interface

Power Supply

12 VDC, 1.9 A

Consumption

≤ 20 W

Dimension (W × D × H)

265 × 225 × 48 mm (10.4 × 8.9 × 1.9 inch)

Weight
